The wood pallet stringer notching machine is mainly used for production of wood pallet that is specifically known as “American standard wood pallet” with notches on stringers allowing four-way lifting by forklift or lift truck. This stringer notching machine is of high quality and efficiency with automatic operation of longitudinal cutting pairs of smooth notches in the same size at one time.
The wood pallet stringer notching machine is a special step in the wood pallet production to notch pallet stringers in order to allow four-way lifting by forklift or lift truck. This machine can cut notches in various sizes, and it also can be customized according to specific demands.
1)The cutting heads are made of alloy material with high hardness, wear resistance, strength, toughness, heat resistance, and corrosion resistance ensuring high performance for long term.
2) This notching machine can cut standard sized notches with high precision but also can be adjusted for specific specifications. The notches are smooth without roughness or burrs.
3) This notching machine is safer for operation equipped with automatic discharging mode and reliable security protection, and the workers operation completely without touching the cutting head.
4) This notching machine is of high quality, efficiency and productivity. It can dramatically improves automation and output of wood pallet factory by replacing traditional way of production.

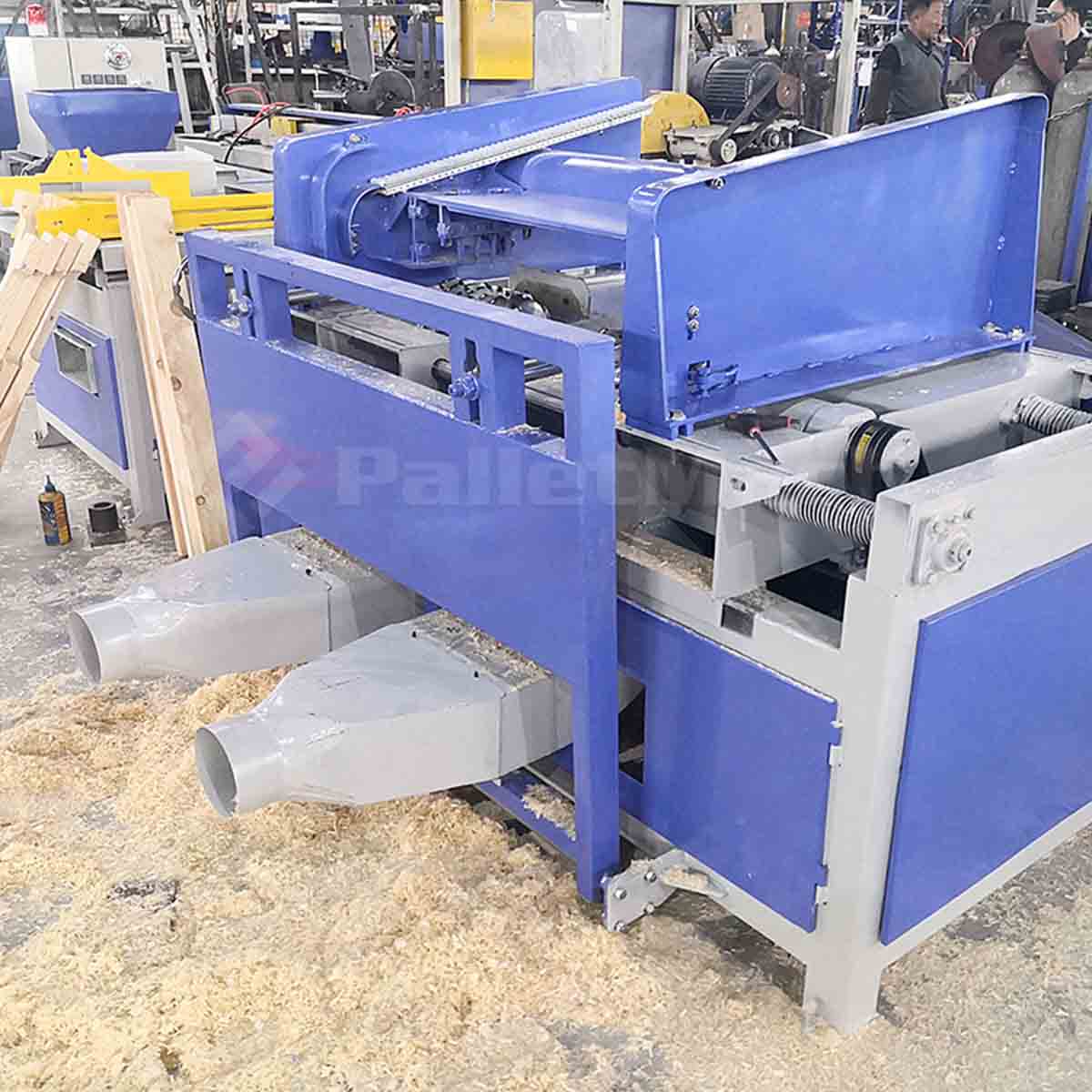

Automatic double-head notching machine for wooden pallets
1) Notching length is adjustable, and the max notching length is 370 mm.
2) The cutting blade is adjustable, can easy to change cutter, and cost-effective.
3) The machine’s knife adopts hard alloy material, with high hardness, wear resistance, good strength and toughness, heat resistance, corrosion resistance and a series of excellent performance.
4) Continuous feeding and automatic discharging platform, can double slot opened at the same time, the excavated area smooth without coarse, standard size, and high precision.
5) Reliable safety protection device, so the worker operation no touch knives with high security.
|
Model |
PMKC-400 |
TYKC-1800 |
|
Overall dimension |
1100*1100*1000 mm |
2500*1300*1500mm |
|
Stringer length |
Unlimited |
Less than 1400mm |
|
String thickness |
40-60 mm |
40-60 mm |
|
Stinger width |
80 mm |
80 mm |
|
Max notch depth |
230 mm |
230 mm |
|
Max notch width |
45 mm |
50 mm |
|
Capacity |
360-720 pieces/hour |
720-1200 pieces/hour |
|
Main motor power |
11 kW |
30 kW |
|
Net weight |
300 kg |
800 kg |
