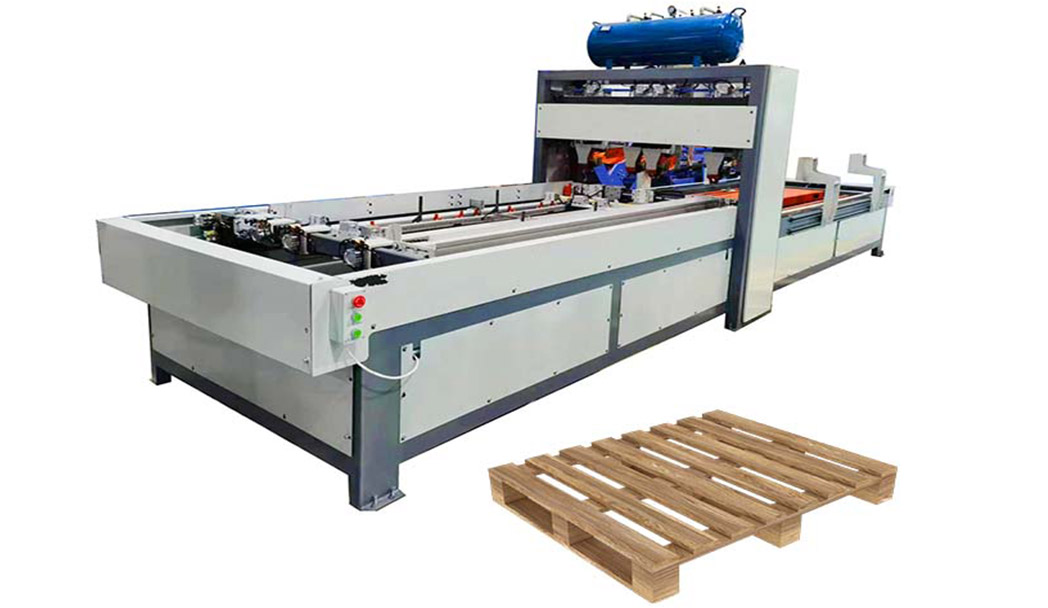

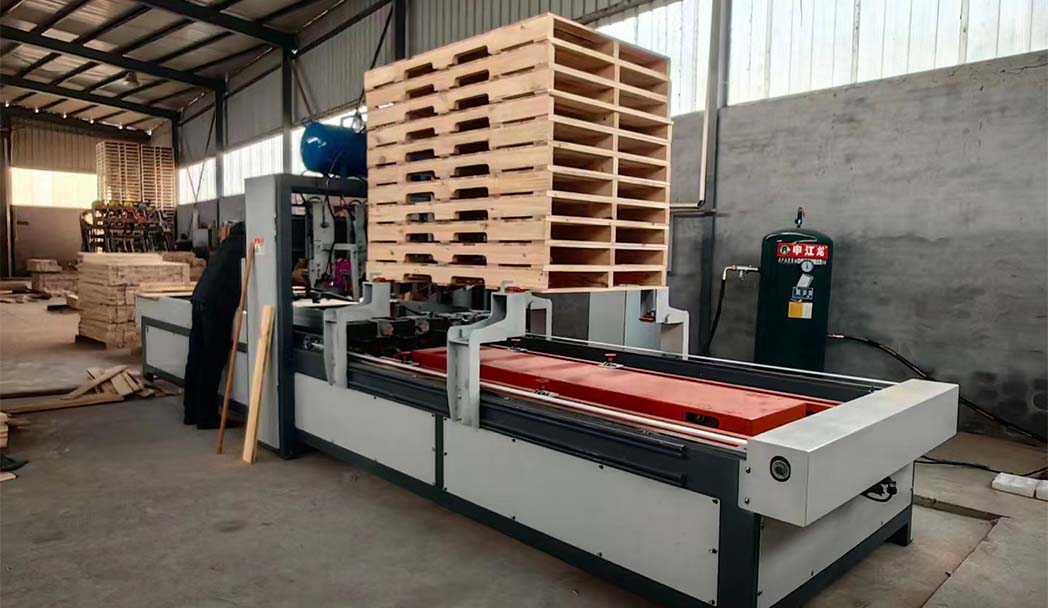

The pallet nailing machine is designed to produce American standard pallets, European standard pallet, and customized pallets.
In order to satisfy the diverse needs of every customer and provide systems designed to measure for their production chains, the installation offered here is a customizable nailing line.

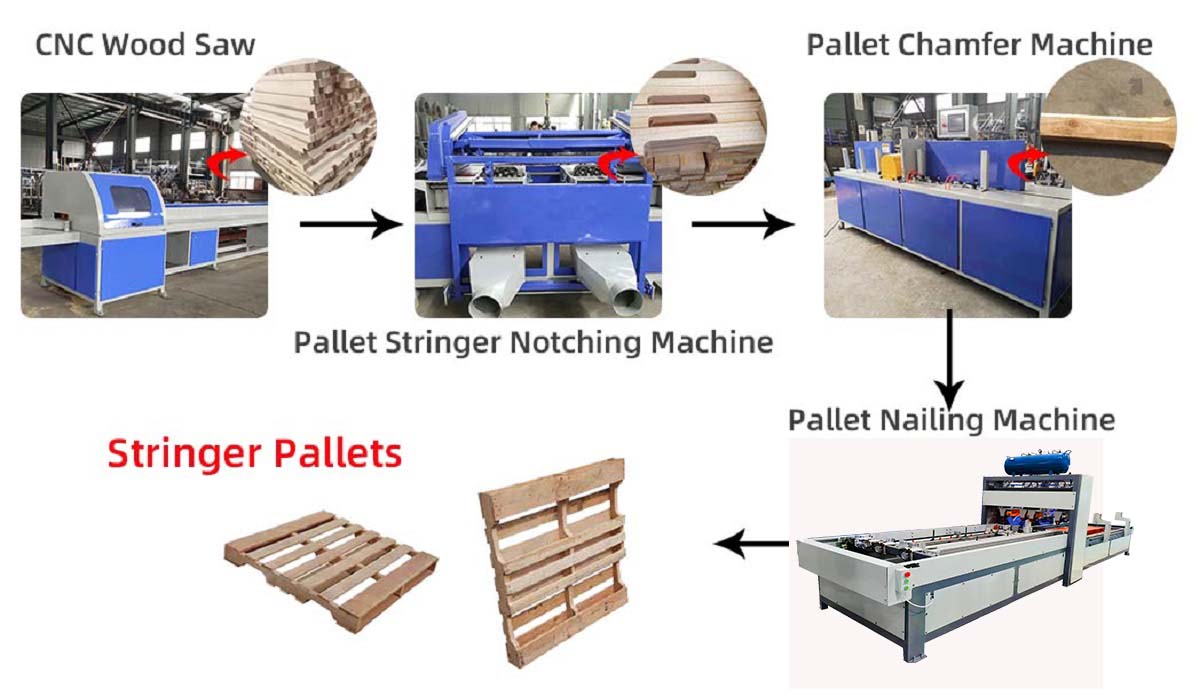

①CNC Wood Saw ②Pallet Notching Machine ③Pallet Chamfer Machine ④Pallet Nailing Machine ⑤Corner Cutting ⑥Stamping ⑦Stacking ⑧Conveying

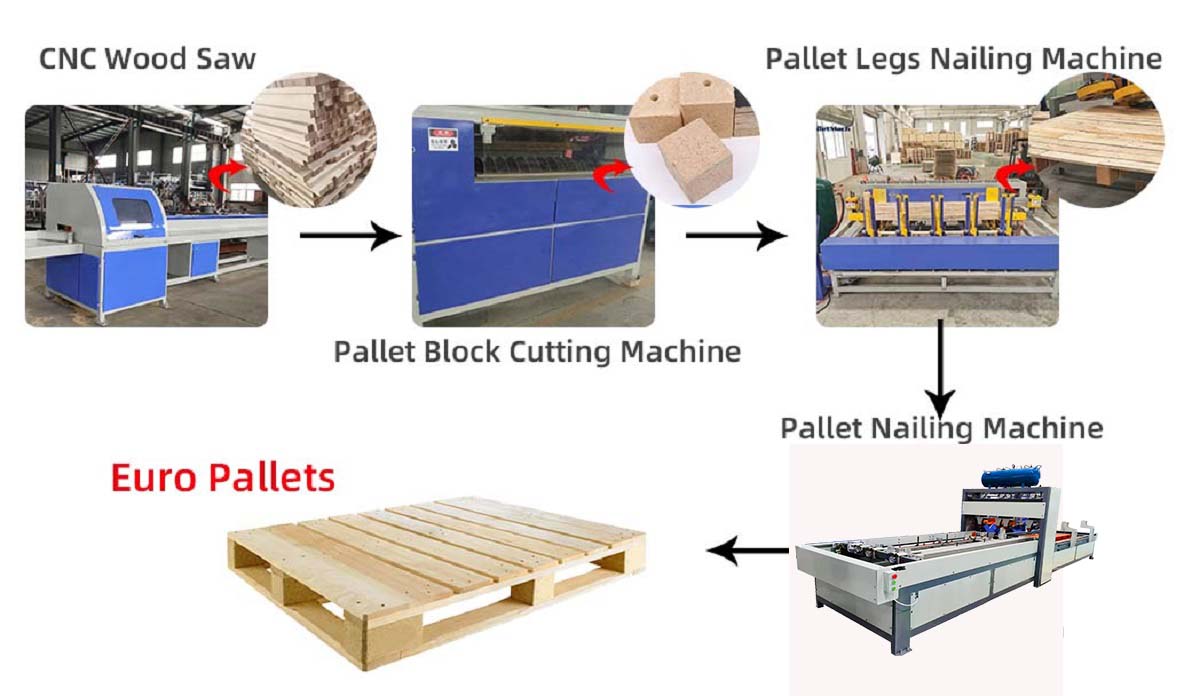

①CNC Wood Saw ②Pallet Block Cutting Machine ③Pallet Legs Nailing Machine ④Pallet Nailing Machine ⑤Corner Cutting ⑥Stamping ⑦Stacking ⑧Conveying
|
Model |
Flat nailing machine |
|
Capacity |
6 pallets/ minute |
|
Working mode |
Manual feeding/Automatic nailing |
|
Operating mode |
Touch screen control |
|
Operational mode |
Pneumatic operation |
|
Motor power |
1.2 kw servo motor |
|
Air pressure |
0.8 MPa |
|
Nail gun speed |
80 m/min adjustable |
|
Voltage |
Customized |
|
Weight |
2000 kg |
|
Overall dimensions |
5400*2350*2050mm |
