The pallet nailing machine is designed to produce American standard pallets, European standard pallet, and customized pallets.
The auto pallet nailing machine is equipped with highly automated reversing and picking device which enables smooth and closely connected process flow. It can be equipped with the automatic pallet stacking machine as one-stop production for nailing and stacking.
The auto pallet nailing machine is fully automated and easy for operation by adopting the operation system of the imported PLC control and touch screen. Compared with the traditional production process, multiple processes for pallet production can be completed with this machine at one time which greatly improves the work efficiency.
|
Model |
PM-TPJ-1300MD |
|
Capacity |
60 pallets/ h |
|
Working mode |
Artificial feeding/Auto Nailing/Auto stacking |
|
Operating mode |
Touch screen control |
|
Operational mode |
Pneumatic operation |
|
Motor power |
1.5 kw servo motor |
|
Air pressure |
0.8 MPa |
|
Tank size |
0.2 cubic meters |
|
Nail gun speed |
7 time/second |
|
Nail apply |
Less than 80 mm |
|
Voltage |
Customized |
|
Weight |
1500 kg |
|
Overall dimensions |
The host 2600*2200*2300 mm |

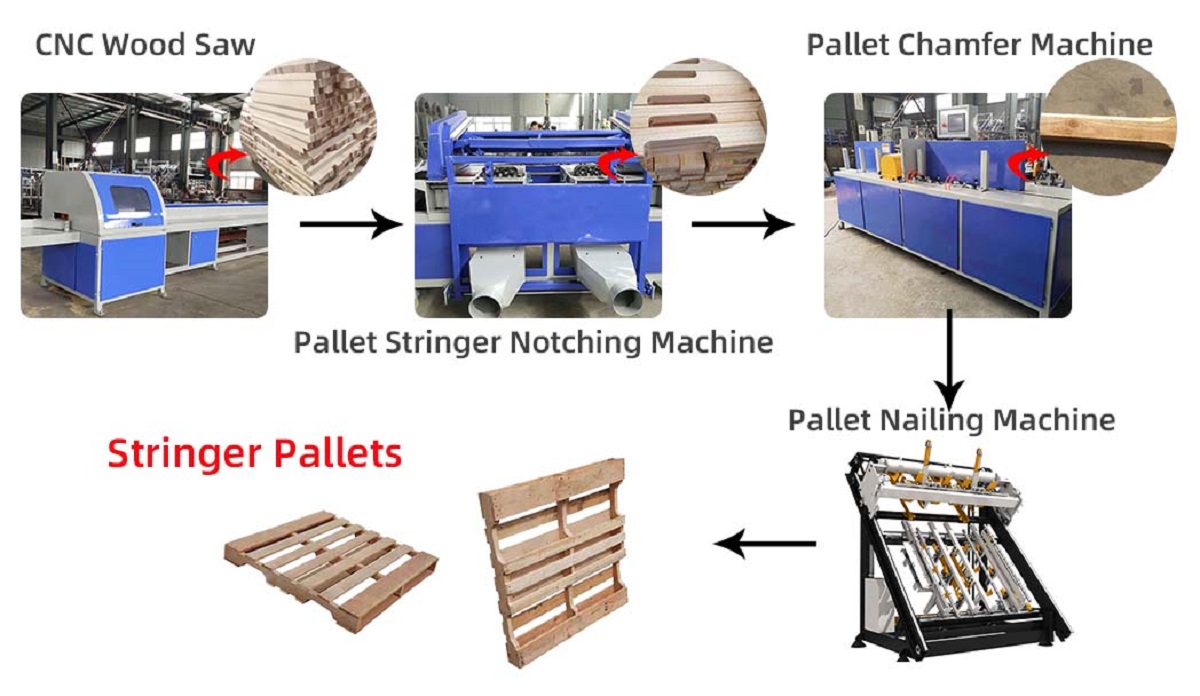

①CNC Wood Saw ②Pallet Notching Machine ③Pallet Chamfer Machine ④Pallet Nailing Machine ⑤Corner Cutting ⑥Stamping ⑦Stacking ⑧Conveying

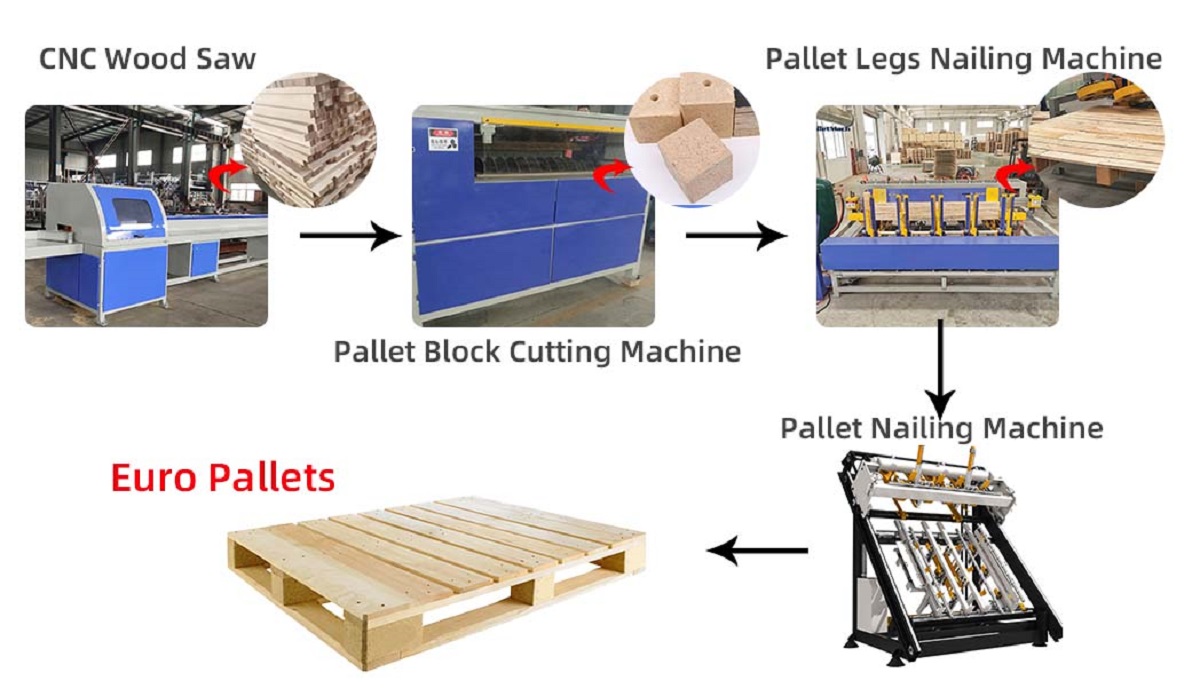

①CNC Wood Saw ②Block Cutting Machine ③Pallet Legs Nailing Machine ④Pallet Nailing Machine ⑤Corner Cutting ⑥Stamping ⑦Stacking ⑧Conveying
