The single mould wood pallet machine, also known as wood pallet machine or wood pallet molding machine, is a new type of one-step molding machine for pressed wood pallet.
By recycling wood chips, waste wood pallets, waste wood, timbers, kraft paper, straw, bamboo and even plastic as the raw materials, this machine not only meets the demands for environmental protection by reusing waste materials that may pollute the environment but also brings huge profits with high quality molding pallets greatly demanded in market.

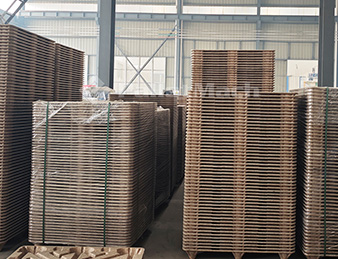

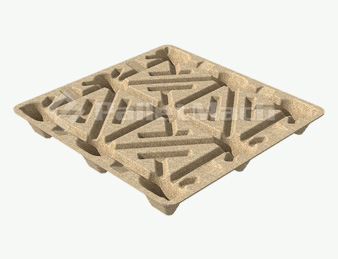

The final product: Pressed Wood Pallet, Presswood Core Plug, Presswood Cable Reel etc.
Raw materials:
1.Waste wood, sawdust, wood chips, wood shavings, raw wood, burned wood, logs, wood board, tree branches, timber, wood planks, waste pallets and so on.
2.Other materials containing rich fiber also can be used for production of pressed wood pallet, such as straw (wheat/corn), waste paper, bamboo, palm trees, coconut fiber, softwood, bagasse, miscanthus and so on.
Low-cost raw materials for this single mould wood pallet machine are very easy to find anywhere in the world.
|
Model |
PM-630 |
PM-800 |
PM-1000 |
PM-1250 |
PM-1600 |
PM-2000 |
|
Dimension(m) |
2.9×2.05×5.1 |
3×2.05×5.2 |
3.1×2.05×5.35 |
3.2×2.05×5.5 |
3.3×2.05×5.6 |
3.4×2.05×5.7 |
|
Weight(t) |
16 |
18 |
20 |
25 |
30 |
42 |
|
Power(kw) |
30 |
30 |
37 |
37 |
45 |
55 |
|
Capacity(pcs/set/h) |
7-13 |
7-13 |
7-13 |
7-13 |
7-13 |
7-13 |
|
Pressure(t) |
0-630 |
0-800 |
0-1000 |
0-1250 |
0-1600 |
0-2000 |
|
Hydraulic cylinder diameter(mm) |
400 |
450 |
500 |
550 |
600 |
650 |
|
Hydraulic cylinder quantity |
4 pieces |
|||||
|
Voltage |
Customized |
|||||
Low moisture content and constant intensity and rigidity. Wood pallet is non-hygroscopic and no deformation in the course. Stable dimension and no distortion and warping.
High precision size and light weight. It is specifically designed reinforcing rib that ensures the intensity and production accuracy. Free fumigation and popular in the import and export transportation.
